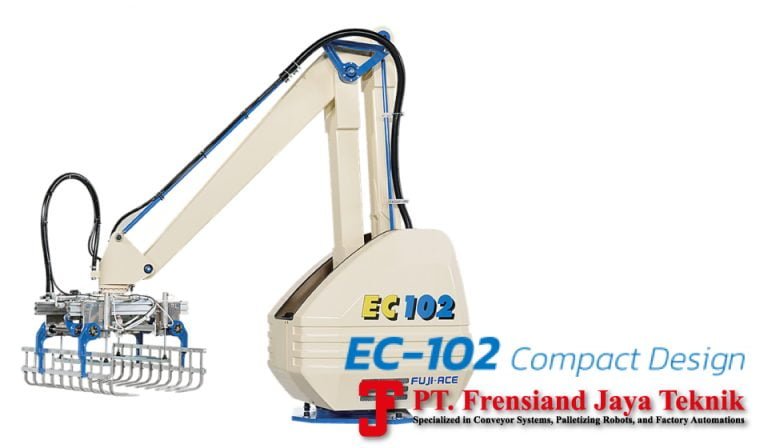

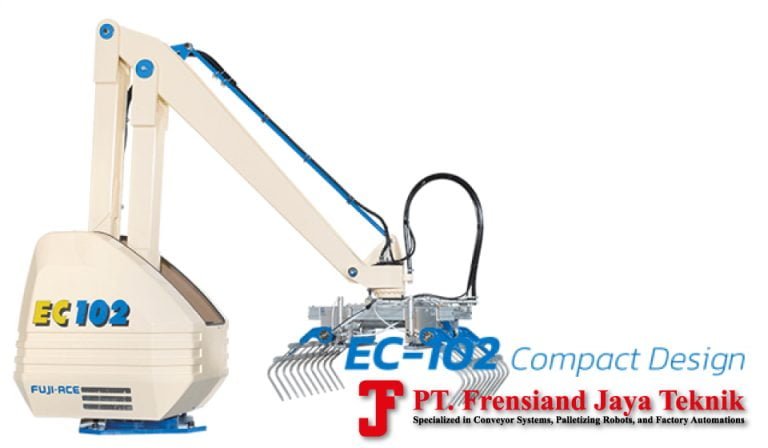

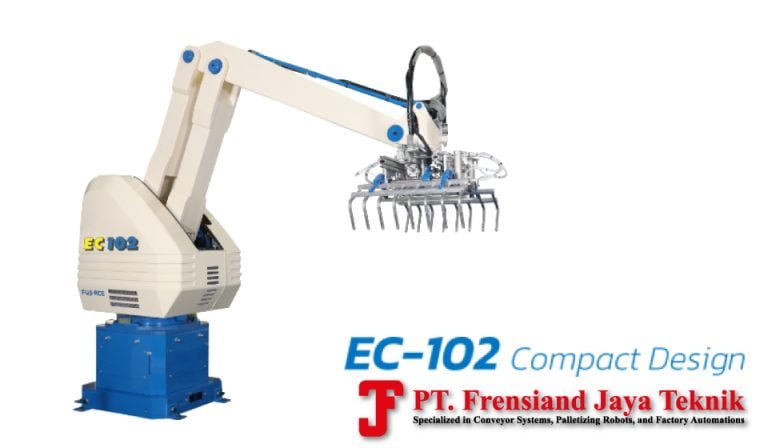

The EC-102 model is one of our most energy-efficient robotic palletizers as it uses only 3.5 kVA. Given the cycle rate-to-power ratio, it provides the most cost-effective, technically capable solution for moderate production throughput lines.
Contact Sales
Click on the WhatsApp button to contact our sales representatives
|
Model :
|
EC-102
|
|
|---|---|---|
|
Mechanism :
|
Articulated Structure
|
|
|
Operation Type :
|
Cylindrical Coordinates
|
|
|
Maximum Payload (including End Effector) :
|
160 kg (350 lbs)
|
|
|
Maximum Palletizing Capacity :
|
1,200 cycles/hours
|
|
|
Degree of Freedom of Motion :
|
4-axis (5th axis optional on end effector)
|
|
|
Operation Range :
|
||
|
Z axis (vertical)
|
2,300 mm (90.50")
|
|
|
R axis (horizontal)
|
1,500 mm (59.00")
|
|
|
Θ axis (rotation)
|
330°
|
|
|
A axis (wrist)
|
330°
|
|
|
Teaching Memory Space :
|
120 - 400 Programming Locations (Blocks) available
|
|
|
Teachingless Systems :
|
Standard equipment
|
|
|
Teaching Pendant :
|
Standard equipment
|
|
|
Power Supply :
|
( 208-220 V AC, 3-phase, 50/60 Hz )
|
|
|
Required Electric Capacity :
|
3.5 kVA / 9.7 A
|
|
|
Pneumatics (Air Supply) :
|
0.5 MPa
|
|
|
Required Air Pressure Capacity :
|
120 Nl/min
|
|
|
Body Weight (excluding End Effector) :
|
700 kg (1,544 lbs)
|
|
